GLOSSARY |
FIRE EXT B+ 2KG MS SP RED |
FIRE EXT B+ 4KG MS SP RED |
FIRE EXT B+ 6KG MS SP RED |

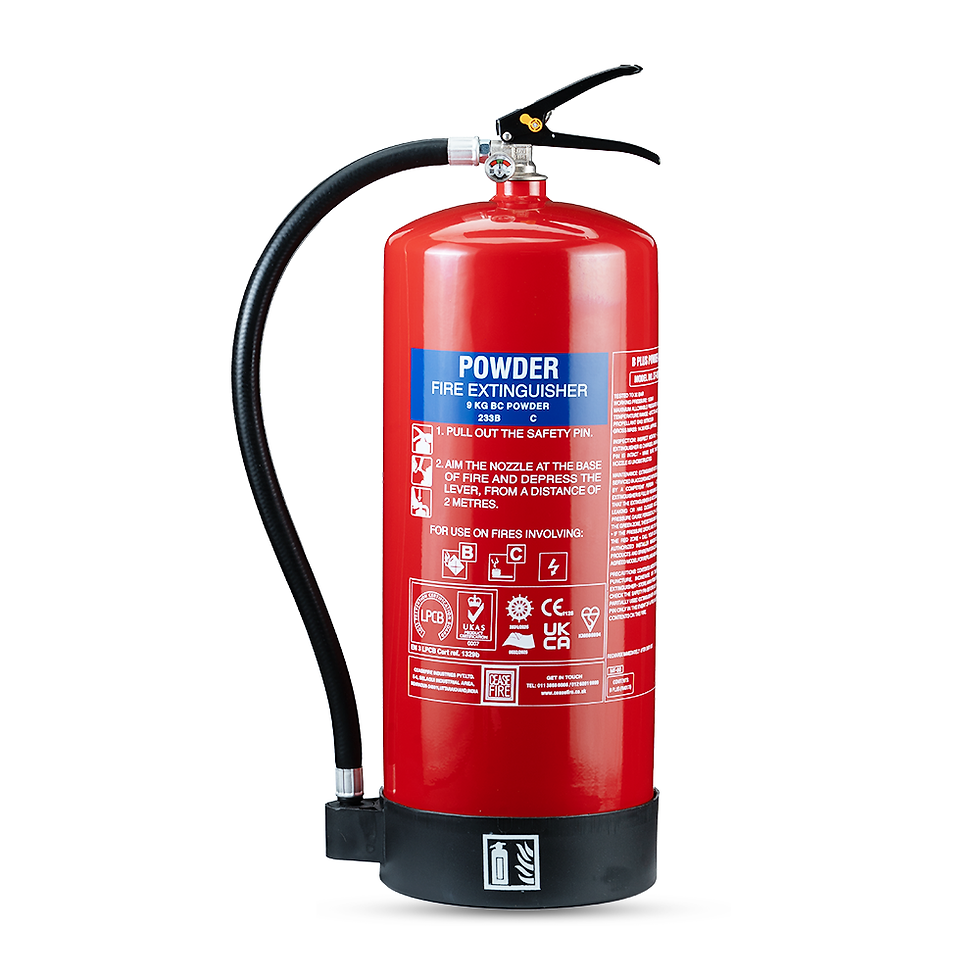

FIRE EXT B+ 9KG MS SP RED |
PRODUCT CODE |
CF-000736 |
CF-000737 |
CF-000738 |
CF-000739 |
AGENT |
B PLUS POWDER |
B PLUS POWDER |
B PLUS POWDER |
B PLUS POWDER |
STORED PRESSURE / CARTRIDGE |
STORED PRESSURE |
STORED PRESSURE |
STORED PRESSURE |
STORED PRESSURE |
CERTIFICATION OR VERIFING BODY |
EUROCERT, LPCB,BSI |
EUROCERT, LPCB,BSI |
EUROCERT,LPCB,BSI,BRE GLOBAL |
EUROCERT,LPCB,BSI,BRE GLOBAL |
CERTIFICATION TYPE |
PED,EN3 |
PED,EN3 |
PED,EN3,MED |
PED,EN3,MED |
LPCB MARKING |
YES |
YES |
YES |
YES |
KITEMARK MARKING |
YES |
YES |
YES |
YES |
CE MARKING |
YES |
YES |
YES |
YES |
THROW |
4 METERS |
6 METERS |
7 METERS |
7 METERS |
GROSS WEIGHT (APPROX) |
4.30KG |
7.30KG |
10.30KG |
14.30KG |
NET MASS |
1.94 TO 2.06 KG |
3.92 TO 4.08 KG |
5.88 TO 6.12 KG |
8.82 TO 9.18 KG |
DISCHARGE MECHANISM |
SQUEEZE GRIP |
SQUEEZE GRIP |
SQUEEZE GRIP |
SQUEEZE GRIP |
APPLICABLE ON FIRES |
B, C, & ELECTRICAL STARTED FIRE |
B, C, & ELECTRICAL STARTED FIRE |
B, C, & ELECTRICAL STARTED FIRE |
B, C, & ELECTRICAL STARTED FIRE |
EN 3 RATINGS |
89B |
233B |
233B |
233B |
EXTERNAL COATING |
EPOXY POLYESTER POWDER |
EPOXY POLYESTER POWDER |
EPOXY POLYESTER POWDER |
EPOXY POLYESTER POWDER |
HELIUM LEAK DETECTION TESTING |
YES |
YES |
YES |
YES |
WARRANTY IN YEAR |
5 |
5 |
5 |
5 |
WORKING PRESSURE |
15 BAR |
15 BAR |
15 BAR |
15 BAR |
HYDROSTATIC TEST PRESSURE |
35 BAR |
35 BAR |
35 BAR |
35 BAR |
DIA. OF SHELL (OD) |
140 MM |
160 MM |
175 MM |
204 MM |
BODY THICKNESS (APPROX) |
1.2 MM |
1.4 MM |
1.4 MM |
1.6 MM |
CYLINDER MATERIAL SPEC. |
STEEL CR2(DC01) |
STEEL CR2(DC01) |
STEEL CR2(DC01) |
STEEL CR2(DC01) |
OPERATING TEMPERATURE |
-30OC TO +60OC |
-30OC TO +60OC |
-30OC TO +60OC |
-30OC TO +60OC |
SCHRAEDER VALVE |
YES |
YES |
YES |
YES |
PRESSURE RELIEF VALVE |
YES |
YES |
YES |
YES |
