GLOSSARY |

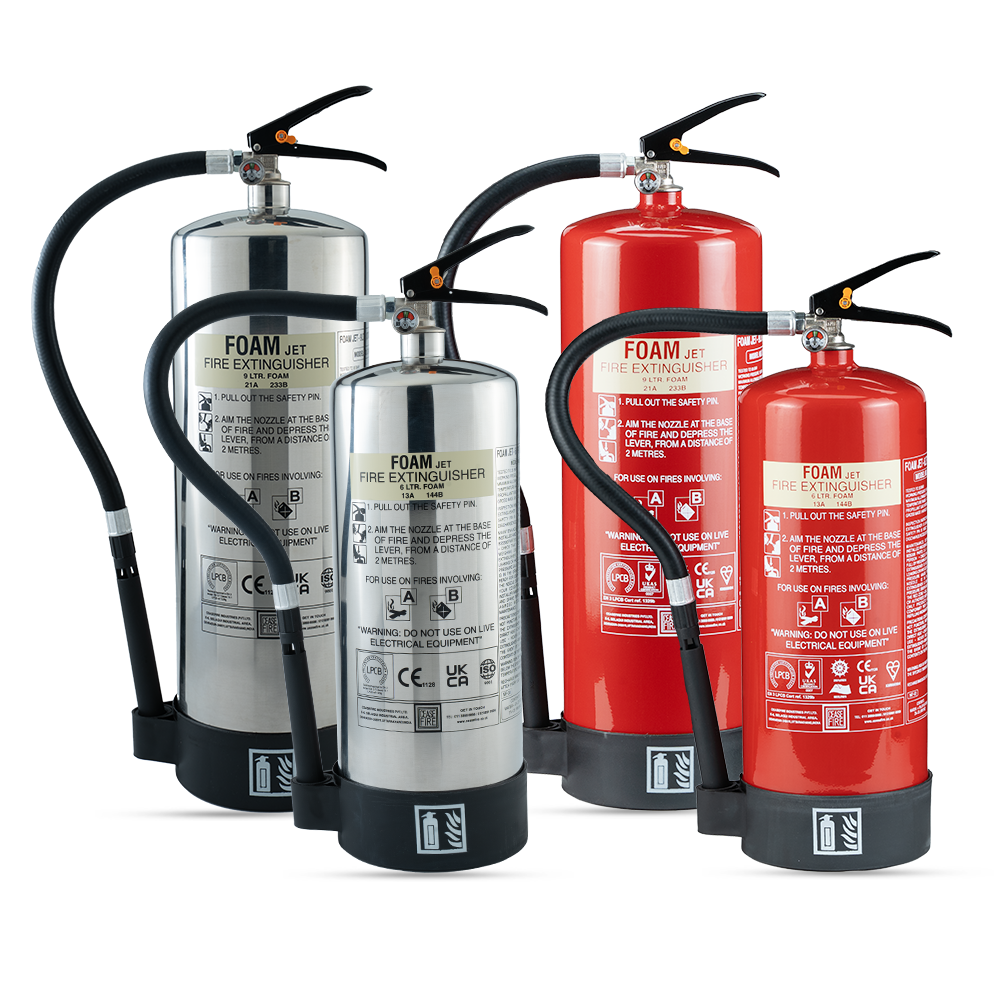

FIRE EXT FOAM 3L SS SP RED |
FIRE EXT FOAM 6L SS SP CHROME |
FIRE EXT FOAM 6L SS SP RED |
FIRE EXT FOAM 9L SS SP CHROME |
FIRE EXT FOAM 9L SS SP RED |
PRODUCT CODE |
CF-000779 |
CF-000986 |
CF-000715 |
CF-000987 |
CF-000716 |
AGENT |
6% OF KV FOAM 3% C-6 |
6% OF KV FOAM 3% C-6 |
6% OF KV FOAM 3% C-6 |
6% OF KV FOAM 3% C-6 |
6% OF KV FOAM 3% C-6 |
STORED PRESSURE / CARTRIDGE |
STORED PRESSURE |
STORED PRESSURE |
STORED PRESSURE |
STORED PRESSURE |
STORED PRESSURE |
CERTIFICATION OR VERIFING BODY |
EUROCERT,LPCB,BSI,BRE GLOBAL |
EUROCERT,LPCB |
EUROCERT,LPCB,BSI,BRE GLOBAL |
EUROCERT,LPCB |
EUROCERT,LPCB,BSI,BRE GLOBAL |
CERTIFICATION TYPE |
PED,EN3 |
PED,EN3 |
PED,EN3 |
PED,EN3 |
PED,EN3 |
LPCB MARKING |
YES |
YES |
YES |
YES |
YES |
KITEMARK MARKING |
YES |
NOT APPLICABLE |
YES |
NOT APPLICABLE |
YES |
CE MARKING |
YES |
YES |
YES |
YES |
YES |
WHEEL / MED MARKING |
YES |
NOT APPLICABLE |
YES |
NOT APPLICABLE |
YES |
THROW |
5 METERS |
5 METERS |
5 METERS |
6 METERS |
6 METERS |
GROSS WEIGHT |
5.70 KG |
9.60 KG |
9.40 TO 9.73 KG |
13.50 KG |
13.05 TO 13.95 KG |
GROSS WEIGHT (APPROX) |
6.0 KG |
9.50KG |
9.50KG |
13.30KG |
13.30KG |
NET MASS |
2.85 TO 3.00 LTR |
5.70 TO 6.00 LTR |
5.70 TO 6.00 LTR |
8.55 TO 9.00 LTR |
8.55 TO 9.00 LTR |
DISCHARGE MECHANISM |
SQUEEZE GRIP |
SQUEEZE GRIP |
SQUEEZE GRIP |
SQUEEZE GRIP |
SQUEEZE GRIP |
APPLICABLE ON FIRES |
A & B |
A & B |
A & B |
A & B |
A & B |
FIRE RATINGS |
8A, 89B |
13A, 144B |
13A, 144B |
21A, 233B |
21A, 233B |
CAN CONSTRUCTION |
DRAWN ROLLED & MIG WELDED |
DRAWN ROLLED & MIG WELDED |
DRAWN ROLLED & MIG WELDED |
DRAWN ROLLED & MIG WELDED |
DRAWN ROLLED & MIG WELDED |
VALVE / CAP CONSTRUCTION |
FORGING AND MACHINING |
FORGING AND MACHINING |
FORGING AND MACHINING |
FORGING AND MACHINING |
FORGING AND MACHINING |
INTERNOT APPLICABLEL COATING |
EPOXY POLYESTER POWDER |
NOT APPLICABLE |
EPOXY POLYESTER POWDER |
NOT APPLICABLE |
EPOXY POLYESTER POWDER |
EXTERNAL COATING |
EPOXY POLYESTER POWDER |
CHROME FINISH |
EPOXY POLYESTER POWDER |
CHROME FINISH |
EPOXY POLYESTER POWDER |
HELIUM LEAK DETECTION TESTING |
YES |
YES |
YES |
YES |
YES |
WARRANTY IN YEAR |
5 |
5 |
5 |
5 |
5 |
G.A. DRAWING NUMBER |
CF/SP-F3-SS/GA/01 |
0 |
CF/SP-F6LB-SS/GA/01 |
0 |
CF/SP-F9LB-SS/GA/01 |
WORKING PRESSURE |
15 BAR |
15 BAR |
15 BAR |
15 BAR |
15 BAR |
HYDROSTATIC TEST PRESSURE |
35 BAR |
35 BAR |
35 BAR |
35 BAR |
35 BAR |
DIA. OF SHELL (OD) |
140 MM |
160 MM |
160 MM |
175 MM |
175 MM |
APPROX. HEIGHT OF FIRE EXT. |
435 MM |
515 MM |
520 MM |
610 MM |
610 MM |
BODY THICKNESS |
1.5 MM |
1.5 MM |
1.5 MM |
1.5 MM |
1.5 MM |
BODY THICKNESS
(LESS THICKNESS) |
1.5 MM |
1.5 MM |
1.5 MM |
1.5 MM |
1.5 MM |
CYLINDER MATERIAL SPEC. |
SS 304 (1.4301) |
SS 304 (1.4301) |
SS 304 (1.4301) |
SS 304 (1.4301) |
SS 304 (1.4301) |
OPERATING TEMPERATURE |
5 O C TO 60O C |
5 O C TO 60O C |
5 O C TO 60O C |
5 O C TO 60O C |
5 O C TO 60O C |
SCHRAEDER VALVE |
YES |
YES |
YES |
YES |
YES |
PRESSURE RELIEF VALVE |
YES |
YES |
YES |
YES |
YES |
